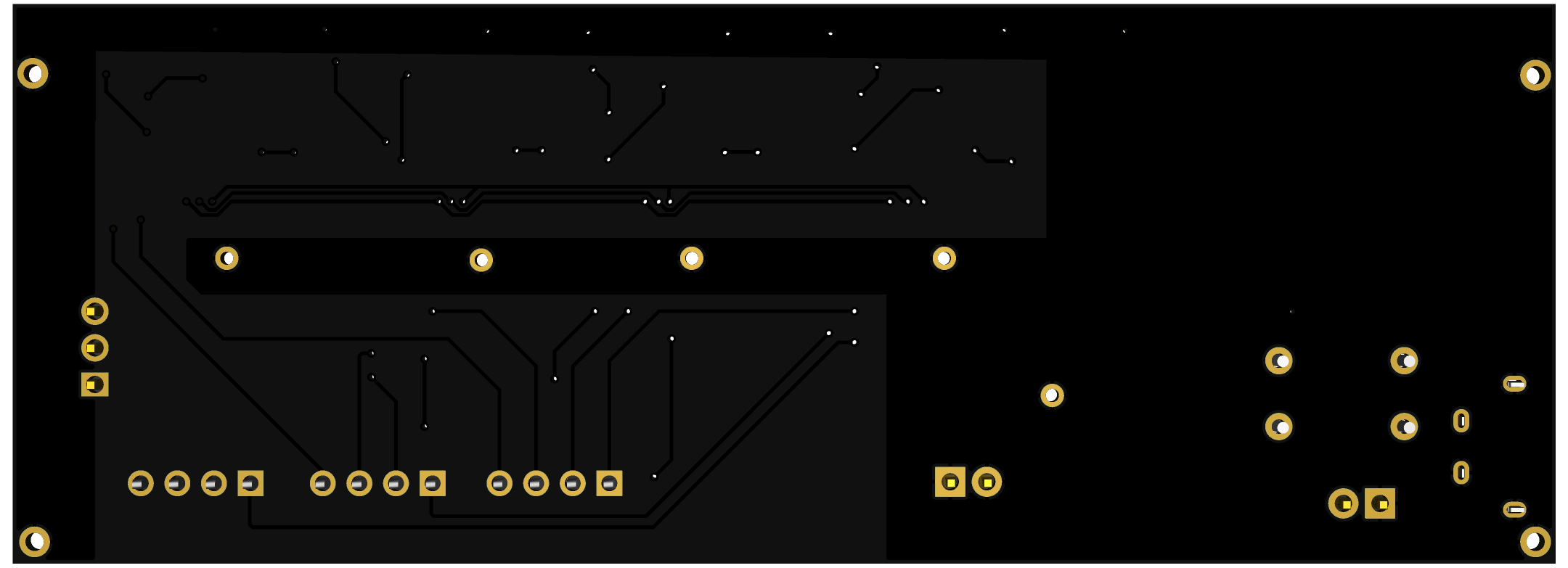

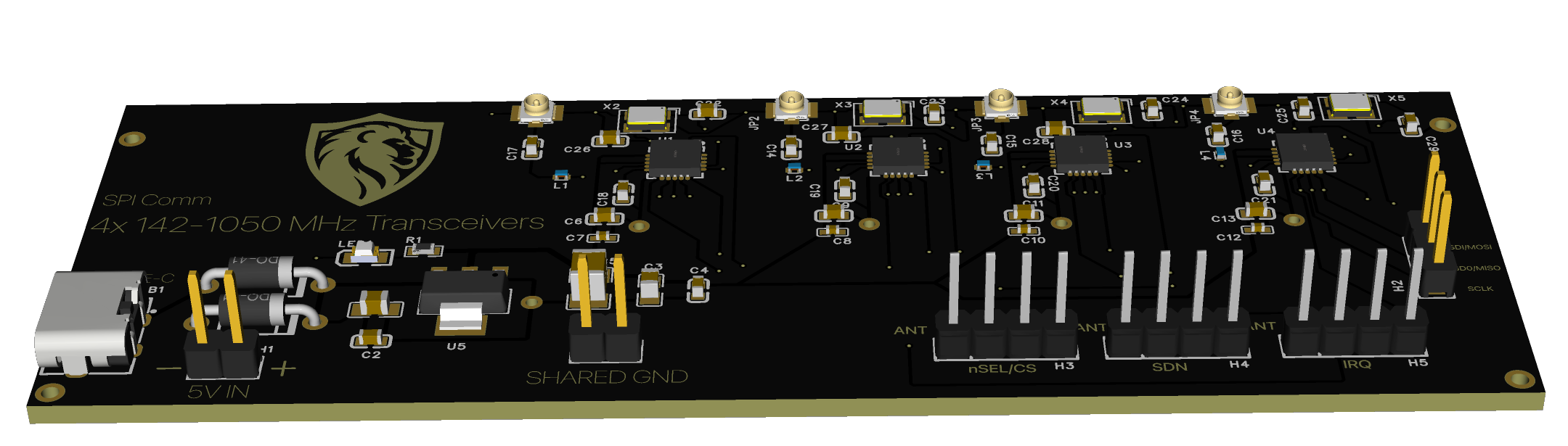

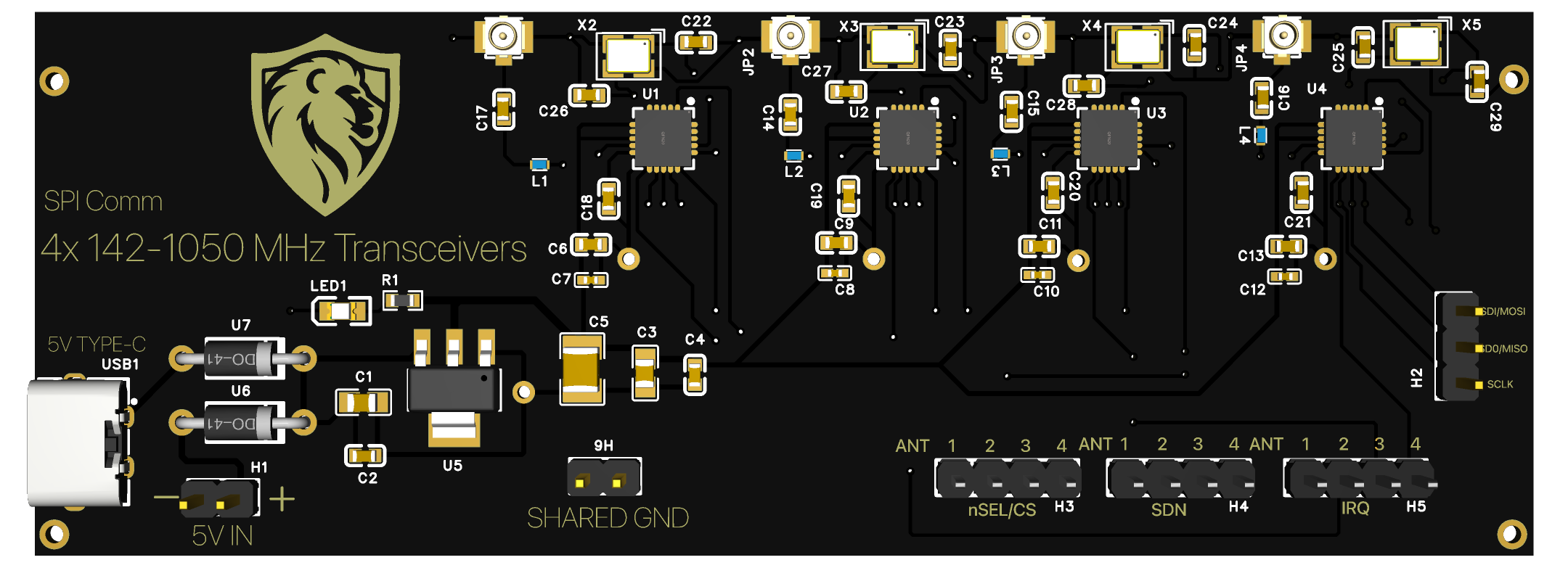

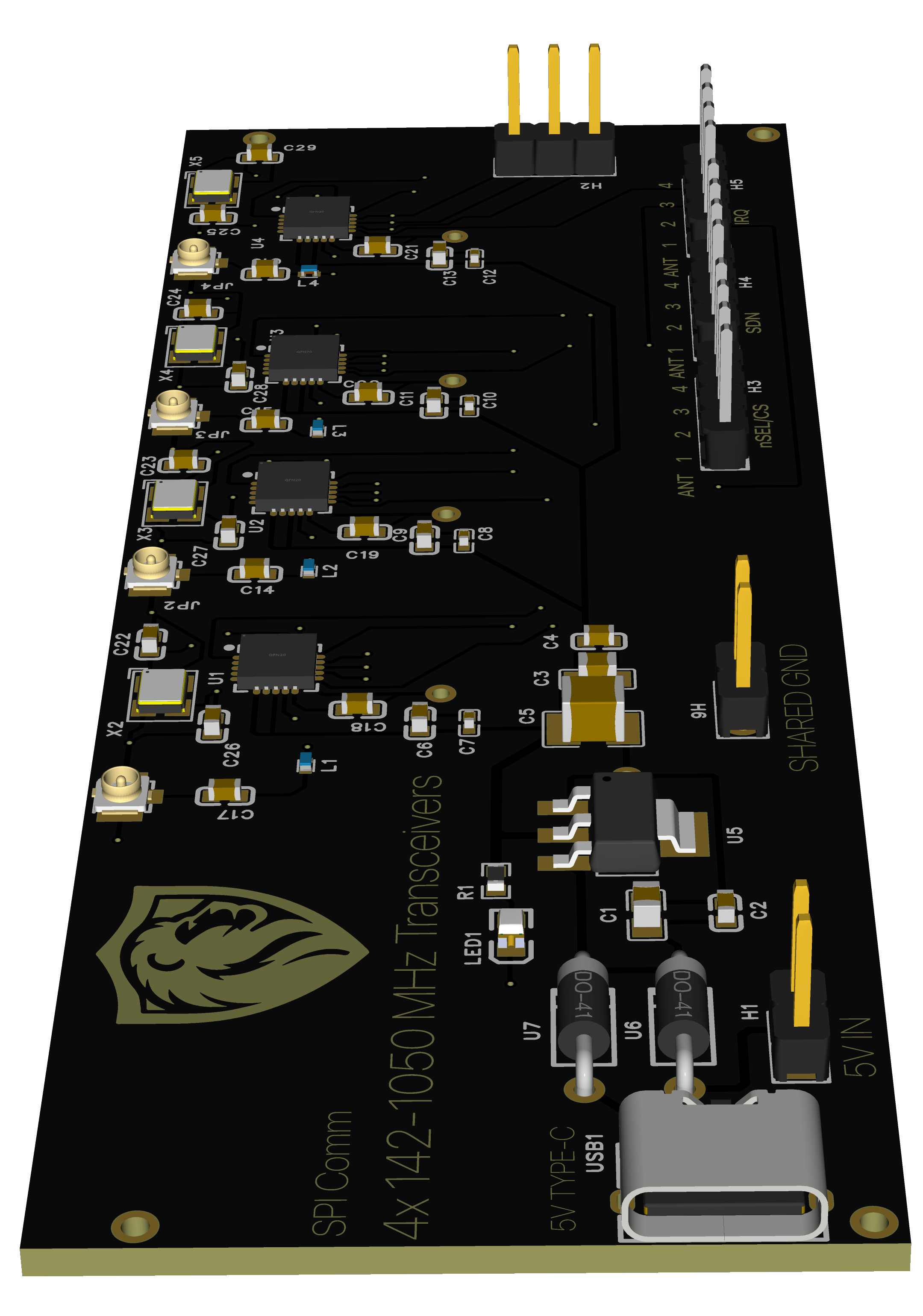

142-1050 MHz Transceivers

Key Features:

       30.00MHz Crystal per Transceiver

       4× Independent SI4463 RF Transceivers

       Frequency Range: 142-1050 MHz

       TX Power: Up to +20dBm (100mW) per channel

       Combined TX Power: Up to +26dBm (400mW) all 4 channels

       RX Sensitivity: -124dBm @ 1.2kbps

       Simultaneous 4-Channel Operation

       ESP32 & Raspberry PI & Arduino etc Compatible (SPI Interface)

       USB-C Power Input (5V) or 5V Headers

       On-Board 5V to 3.3V Regulator

       Power LED Indicator

       U.FL Antenna Connectors (4×)

       Modulation: FSK, GFSK, OOK, ASK

       Data Rate: 0.123 to 1Mbps (programmable)

       Channel Spacing: Programmable

Interface:

       Communication: SPI (shared MOSI/MISO/SCLK)

       Control: Individual CS, SDN, IRQ per module (4× each)

       Connectors: 2.54mm headers (SPI, CS, SDN, IRQ, GND)

       Compatibility: ESP32, Arduino, ESP-IDF

       Logic Levels: 3.3V

       SHARED GROUND MUST BE USED with external controller (ESP32, PI, Arduino)

Antenna Recommendations:

       Frequency Specific U.FL Per Module = High Gain = Longer Range

                430-440MHz - 860-870MHz - 902-928MHz - 915MHz

       Wide Band U.FL Antennas = Low Gain = Shorter Range

                400-1000MHz - 300-1000MHz etc

Usage:

       Multi-channel RF communication

       Mesh networking

       Wireless sensor networks

       IoT Jamming Applications

       Remote control system

       Data telemetry
