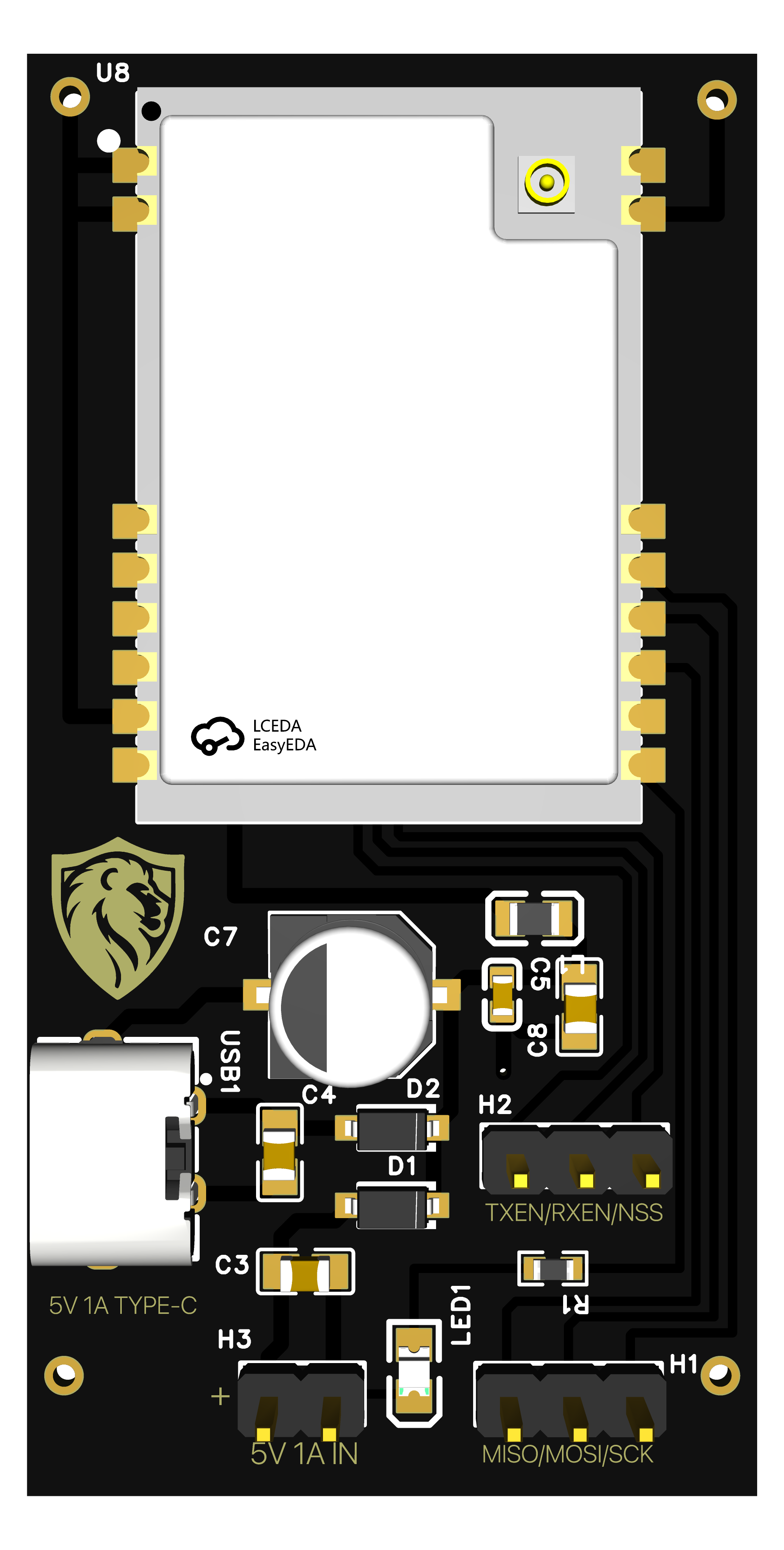

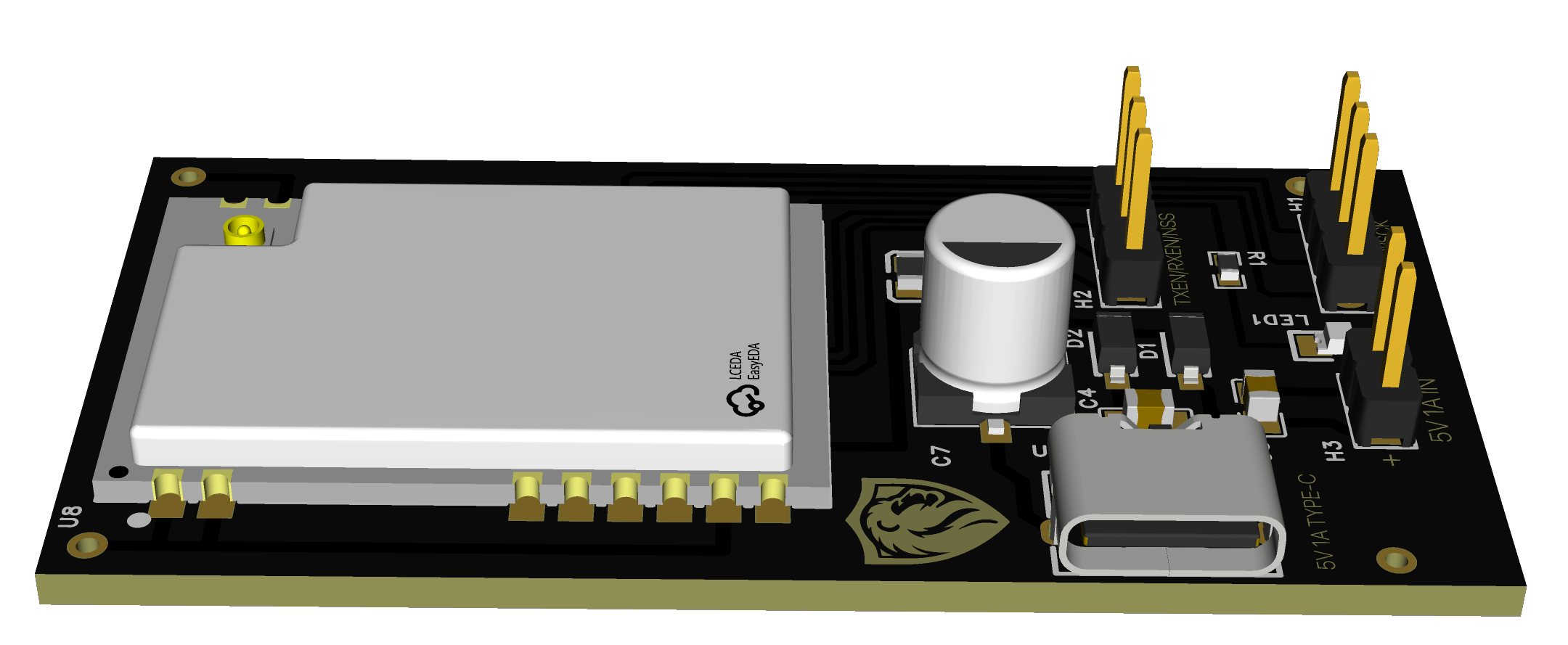

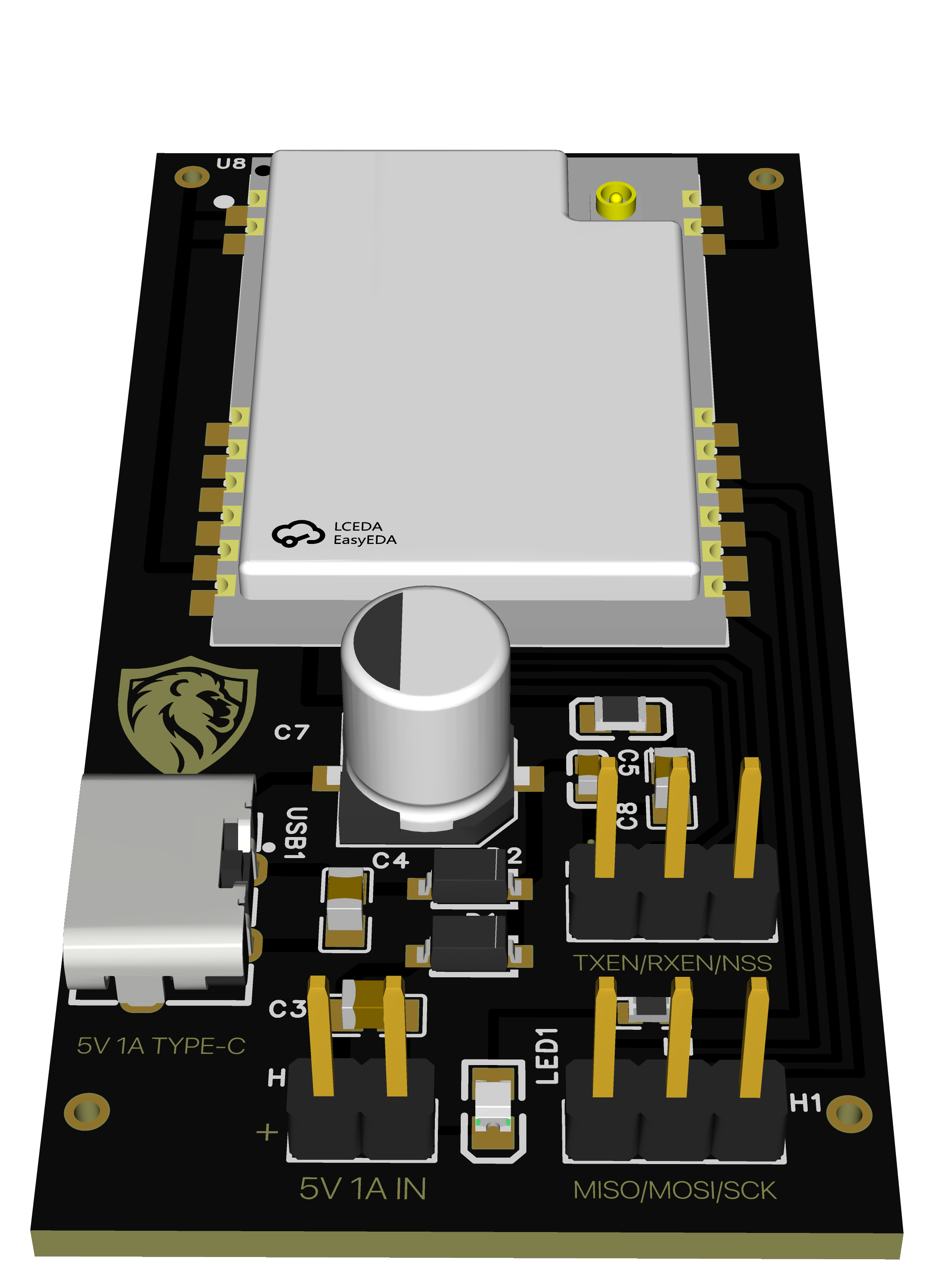

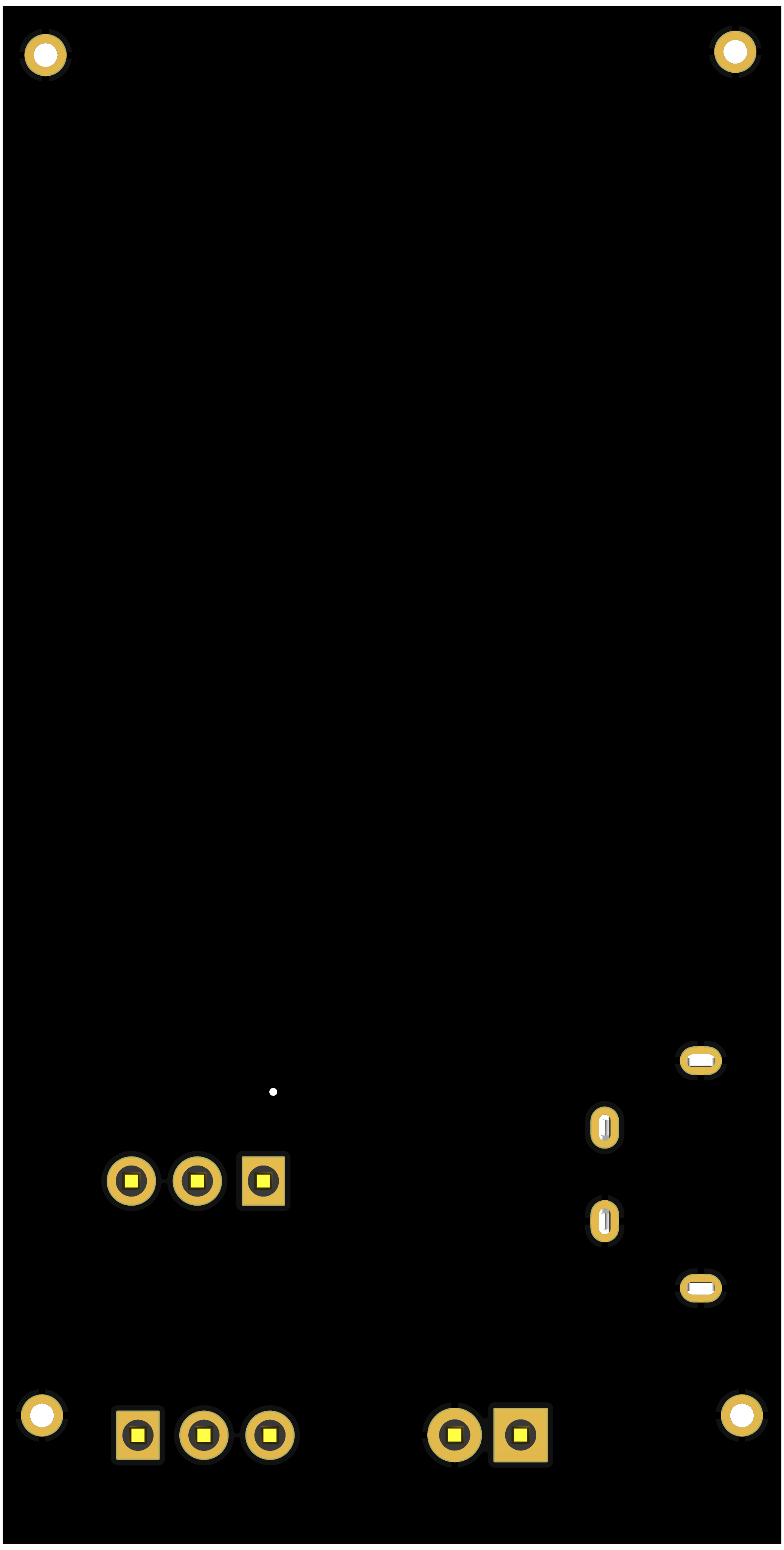

1W Custom 2.4GHz Transceiver

The VG2392S240X0M3 is a high-performance 2.4GHz RF transceiver module based on the SX1281 chipset. This module provides long-range wireless communication capabilities for Raspberry Pi and other embedded systems, featuring 1W (30dBm) output power for extended range applications.

- **1W (30dBm) output power** - Enables long-range communication
- Suitable for applications requiring extended range
- Line-of-sight range: Several kilometers

- **LoRa modulation** - Low power, long range
- **GFSK modulation** - High data rate option
- Configurable spreading factor, bandwidth, and coding rate
- Variable packet length support

- **SPI interface** - Simple connection to Raspberry Pi
- **Minimal pin requirements** - Only 6 pins needed (NSS, TXen, Rxen, MOSI, MISO, SCLK)
- **Python driver included** - Ready-to-use code provided
- **5V power input** - Board includes internal regulator

- **CRC error checking** - Ensures data integrity
- **Configurable preamble** - Optimize for your application
- **Power control** - Adjustable TX power levels
- **Continuous RX mode** - Always listening capability

Technical Specifications

| **Frequency Range** | 2.4 - 2.5 GHz |
| **Output Power** | 1W (30dBm) maximum |
| **Modulation** | LoRa, GFSK |
| **Spreading Factor** | SF7 - SF12 (LoRa) |
| **Bandwidth** | 7.8 kHz - 500 kHz |
| **Coding Rate** | 4/5, 4/6, 4/7, 4/8 |
| **Power Supply** | 5V (board regulates internally) |
| **Current Consumption** | Standby: ~10-20mA RX: ~50-100mA TX (max): ~200-800mA |
| **SPI Interface** | Mode 0, up to 10 MHz |
| **Operating Temperature** | -40°C to +85°C |
| **Antenna** | Required, 2.4GHz, rated for 1W minimum |

Applications

- **Long-range data links** - Remote monitoring, telemetry
- **IoT applications** - Sensor networks, smart agriculture
- **Drone/UAV communication** - Remote control, telemetry
- **Wireless sensor networks** - Industrial monitoring
- **Point-to-point links** - Building-to-building communication
- **Research and development** - RF experimentation

**Important:**
- Antenna must be rated for 1W (30dBm) power handling
- Never transmit without antenna connected
- Check local regulations for 2.4GHz band usage
- Module may get warm during high-power transmission
- Ensure proper heat dissipation in enclosed spaces
